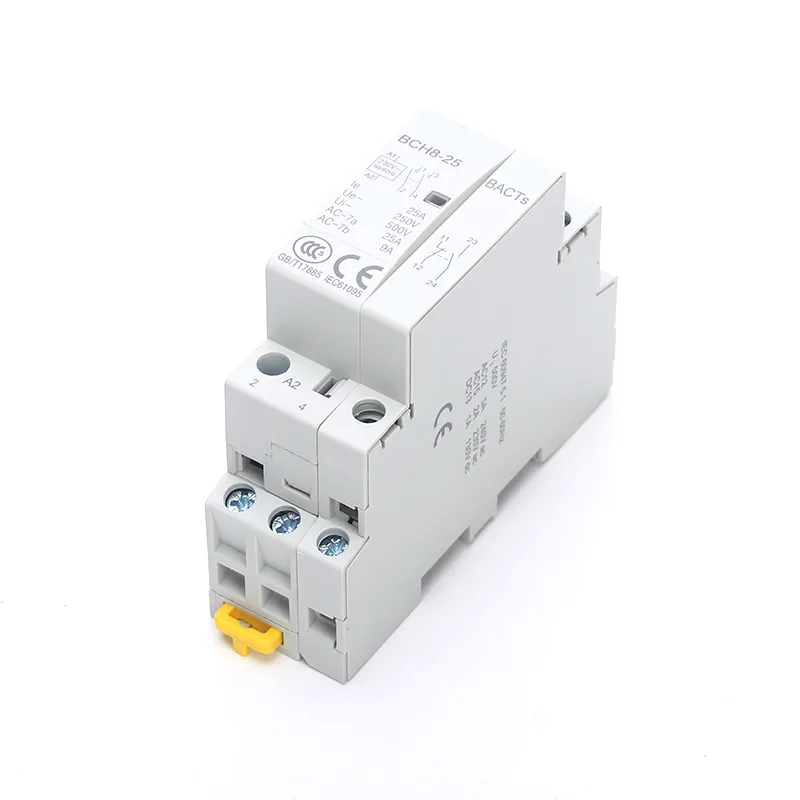

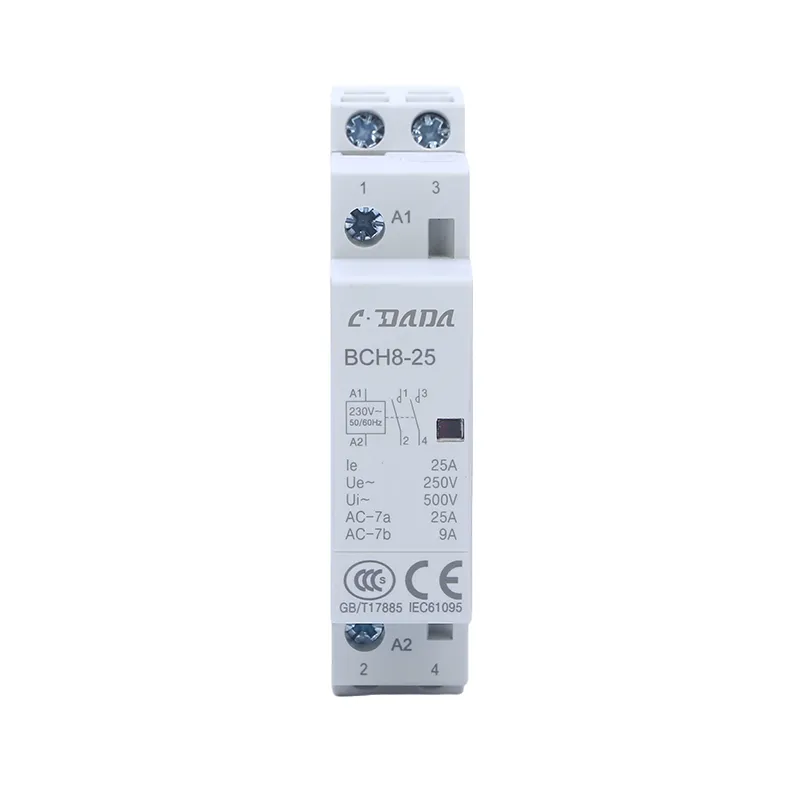

BCH8 Contactor
CDADA certa est supplementa Contactoris BCH8, technicam opem et warantum pro nostris productis offerre possumus. Hic contactor tacet, 16-125A, ad motores HVAC & parvas accendendos. Prosequitur IEC61095/IEC60947-4-1. DIN-rail conscendit, IP40 in tabulis, ad ædificiis captiosis & ad facultates publicas adhibendas aptas.
Occursum CDADA BCH8 Contactoris — pacti, modularis et ultra quietis solutionem, a certo fabricante CDADA oblatam. Etiam nota ut "domus" vel "constructor constructionis" BCH8 machinatur ad commutationes remotas resistentiae et onerum inductivarum ut accendit circuitus, aquarum calentium, systemata geotherma, cylindrus adaperta, et motores domestici parvi.
Aestimavit usque ad 125A (AC-1) et 50A (AC-3) ad 400V, in temperaturis ambientibus fideliter operatur ab -5°C ad +60°C et in regulam TH35 cancellorum DIN directe ascendit, perfectus ad integrationem iuxta MCB in tabulis distribuendis. Cum praesidio IP40 inauguratus, sine strepitu operativo, et fenestrae indicatae status manifesta, BCH8 est specimen hotels, hospitalia, officia, malla mercatus, et aedificia residentiales captiosos.
Obsequium cum IEC 61095, IEC 60947-4-1, GB17885, et GB/T 14048.4, SELV/ELSV intentiones moderationis sustinet (12-240V AC/DC) et 1 decies cyclos mechanicos et operationes electricas 100,000 tradens durabilitatem sine quiete vel aesthetico tradit.
Key Specifications
| Series: | BCH8 Modular AC Contactor |
| Notam: | CDADA | Manufacturer: Shanghai DADA Electric CO.,LTD |
| Poloni: | 1P, 2P, 3P, 4P (variae compositiones NO/NC) |
| Current Rated (AC-1); | 16A – 125A |
| Ratum Current (AC-3); | 6A - 50A (pro parvis onerat motricium) |
| Rated Voltage Operating: | 250V (1P/2P), 400V (3P/4P) |
| Rated Insulation Voltage (Ui); | 500V |
| Imperium Voltage: | AC/DC 12V, 24V, 48V, 110V, 230V (late SELV range) |
| Signa: | IEC 61095, IEC 60947-4-1, GB17885 |
| Mechanica Vita: | ≥1,000,000 res |
| Vita electrica: | ≥100,000 res |
| Max Switching Frequency: | XXX Opis / hora, C Opis / hodie |
| Degree pollutio: | II | Categoria: II |
| Praesidium Rating: | IP20 (body), IP40 (in clausura) |

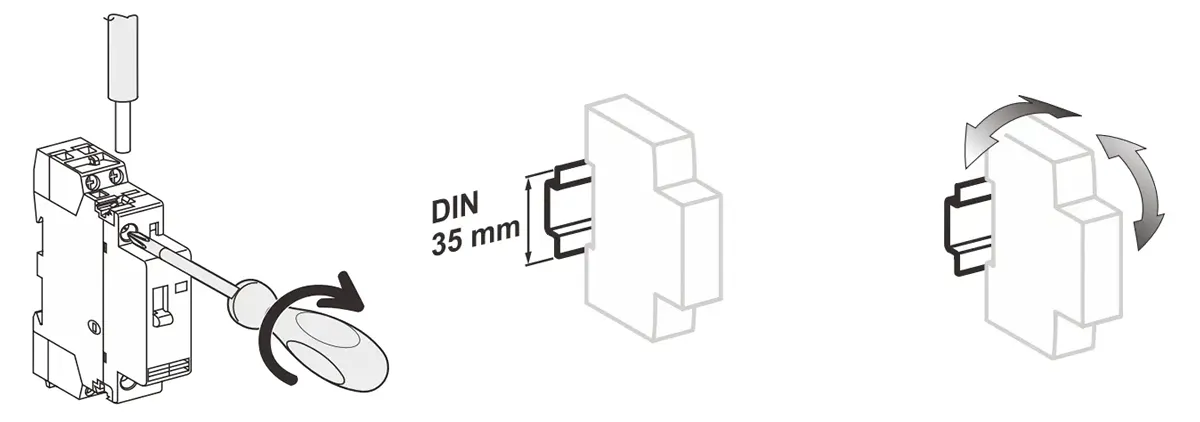

| Institutionem: | TH35-7.5 DIN rail, vertical ±5° |
Features speciales:
Silens operationem (specimen hospitalium / hotels)
Status indicator fenestra

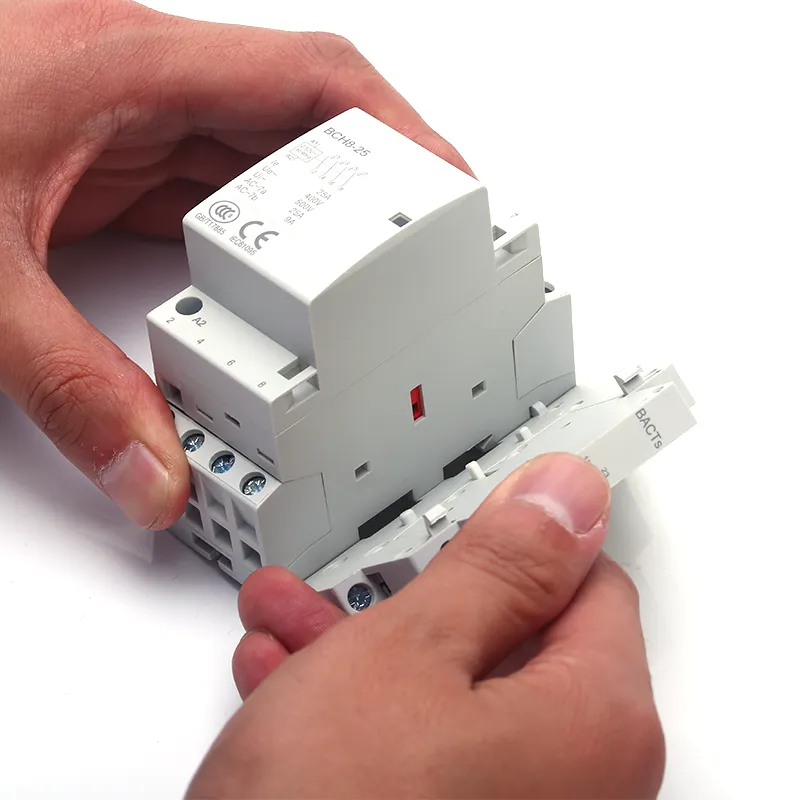

override optio Manual (exempla in selectis)
Spacers ad calorem dissipationis in tabulis densis

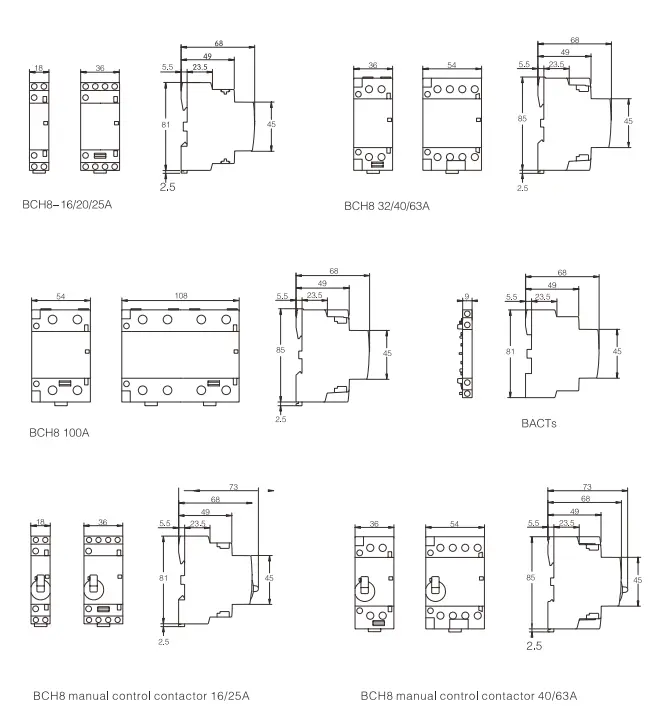

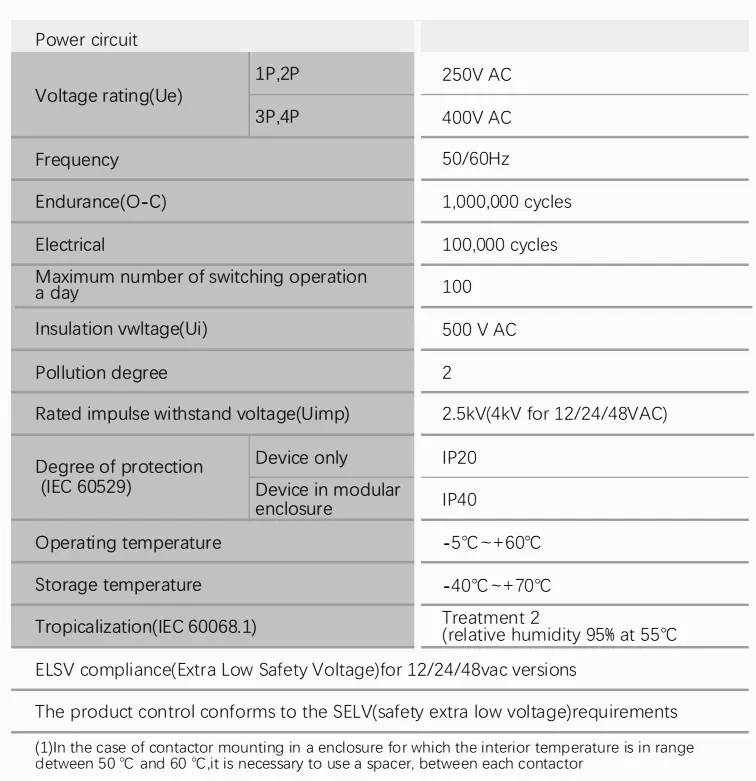

Technical Data Sheet
Cur Contactorem elige CDADA BCH8?
Lorem Smert Aedificiorum
Perfectum ad accendendum imperium, HVAC zoning, et adaperta automata in inceptis commercialibus/residentialibus.
Operatio vero Silens
Non fremunt vel stridore - critica pro hospitalibus, hotels, bibliothecis et conclavibus.
Modular & Space-Saving
Vexillum 9mm multiplices compaginem aptant iuxta MCBs — uncis non extra vel adaptors.
Global Salus Obsequium
Occurrit IEC 61095 (contatores domestici) et IEC 60947-4-1 (industrialis) - dual-certified firmitas.
SELV Imperium Support
Accepit AC/DC-specimen 12-48V pro PLC, BMS, seu systemata domestica callidi utens moderamine humili.
High Durability
1M cycli mechanici annos sustentationis gratis servitii in applicationibus summus cycli efficit.

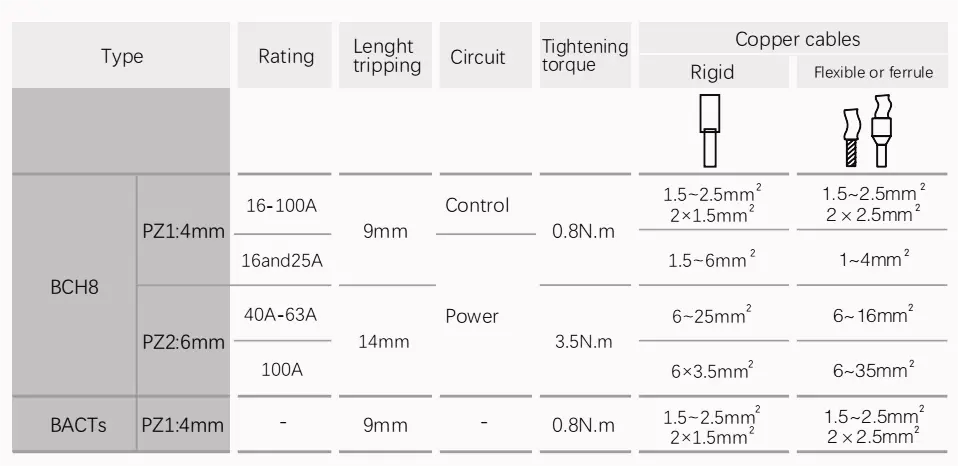

Connector Morbi
Typical Applications
★ Imperium deponens: Stadiums, malls, officium corridors
Building Automation: Rollerus adaperta, area geothermal calefactio, aqua soleatus
Publica Facultates: Hospitalium, nisl, regimen muneris centers
Residentiales: Smart domos, conclavia complexa, villa energiae procuratio
OEM Panels: Integrated in intelligent distribution boards
Divisio-
Quid elige CDADA?
Fortis elit basis
★ In diplomatibus nationalibus LX possidemus, inter inventa, utilitates exempla et consilia.
★ Sales fabrum nostrum adiuvare possunt vos eligere aptissimum productum substructio in applicatione, onere et systemate requisita.
★ producti nostri instructi sunt pro viribus eget inceptis, plantis industrialibus, aedificiis mercatoriis, et infrastructura in multis regionibus.
★ Clavis nostra commoda sunt:
I) certificationes Complete internationalis:
2) OEM/ODM facultatem;
3) Ratio perficiendi sumptus-High;
4) Facultas productionis magnarum certarum, 5) experientia exportationis extensa.
Frequenter Interrogata
Q1: Estne BCH8 Contactor aptus motori potestate?
A1: Ita-sed solum pro motoribus parvis domesticorum (exempli causa, garage portae, parvae soleatus). Pro AC-3 usque ad 50A (125A exemplar aestimatur). Ad motores industriales, series contactorum F vel D utuntur.
Q2: Cur in tabulis eget spacers?
A2: BCH8 generat calorem in continua operatione. Spacers (3mm/9mm) inter unitates airfluxus meliores sunt et ne aestuent in cistas distributionis dense refertae.
Q3: Potestne refrenari a callido patria ratio?
A3: Absolute! Cum 12V/24V optiones coil DC, directe integrat cum KNX, BACnet, PLCs vel Raspberry Pi-substructio moderatoris.
Q4: Quid interest inter contactos BCH8 et industriales?
A4:
● BCH8: Optimized pro quiete, frequenti mutandi oneribus resistendi; occurrat 61095 IEC.
● Industrial (exempli causa motorum currentium AC-4 officiorum, et ambitus asperos.
→ BCH8 = aedificatio, consolatio ; F/D series = potentia officinas.
Q5: Quid elige CDADA BCH8 super alias faces?
A5: CDADA offert;
Verum modularis design cum vexillum DIN compatibility
● Dual obsequens (IEC 61095 + IEC 60947-4-1)
Low-voltage SELV gyros pro captiosus systemata
Nulla sonitus operatio-verificatur in real-mundi probat
Aliquam cursus sapien cum plena subsidia technica Anglis
