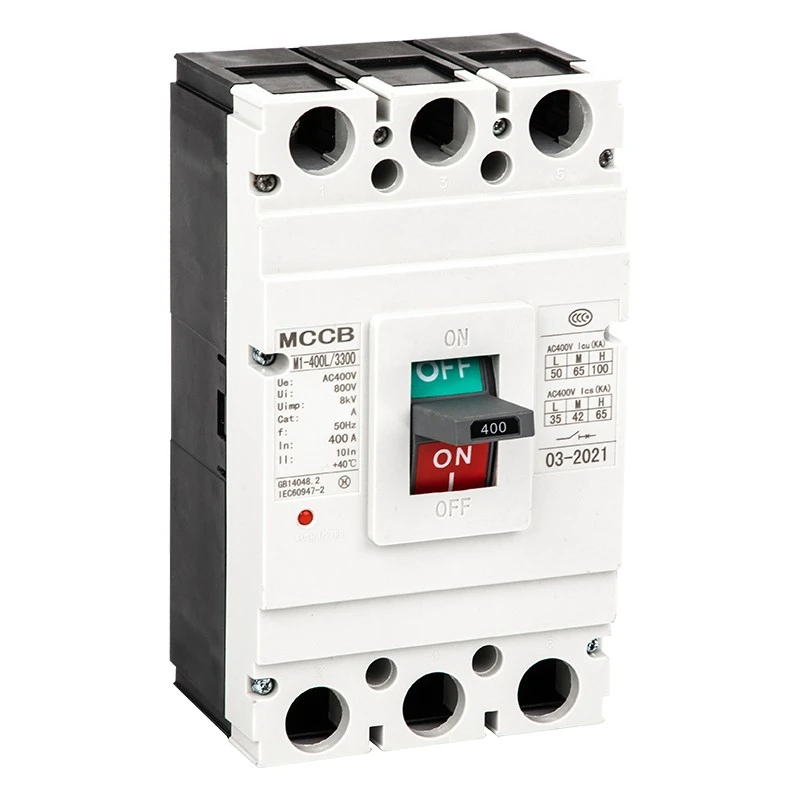

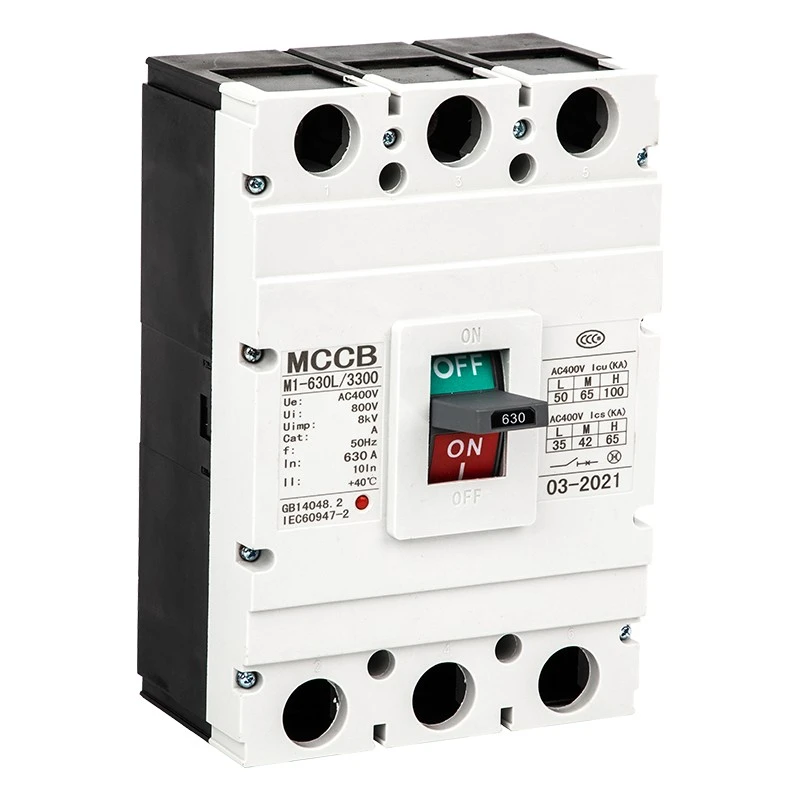

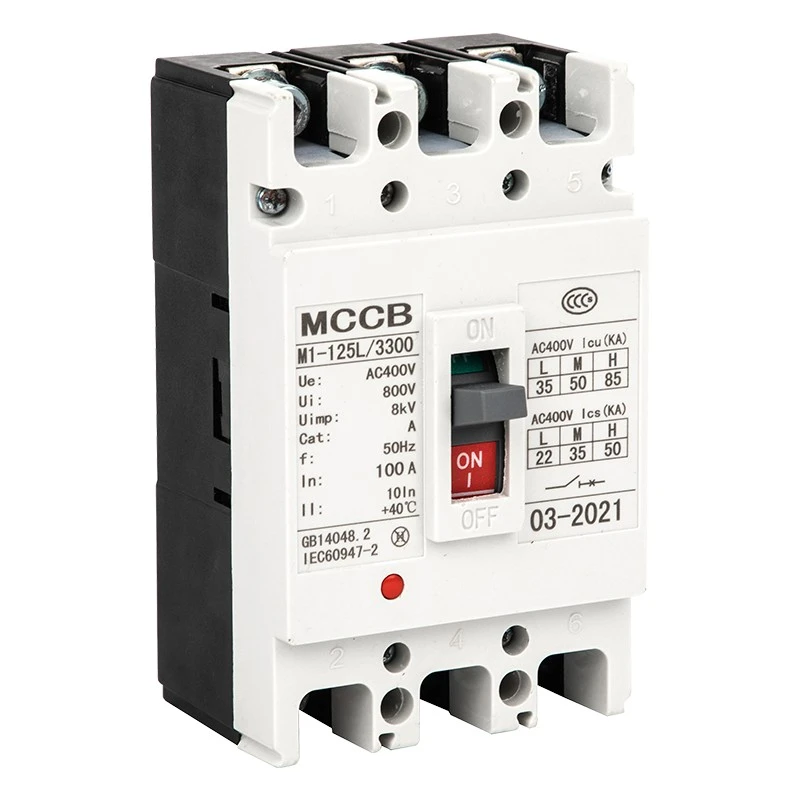

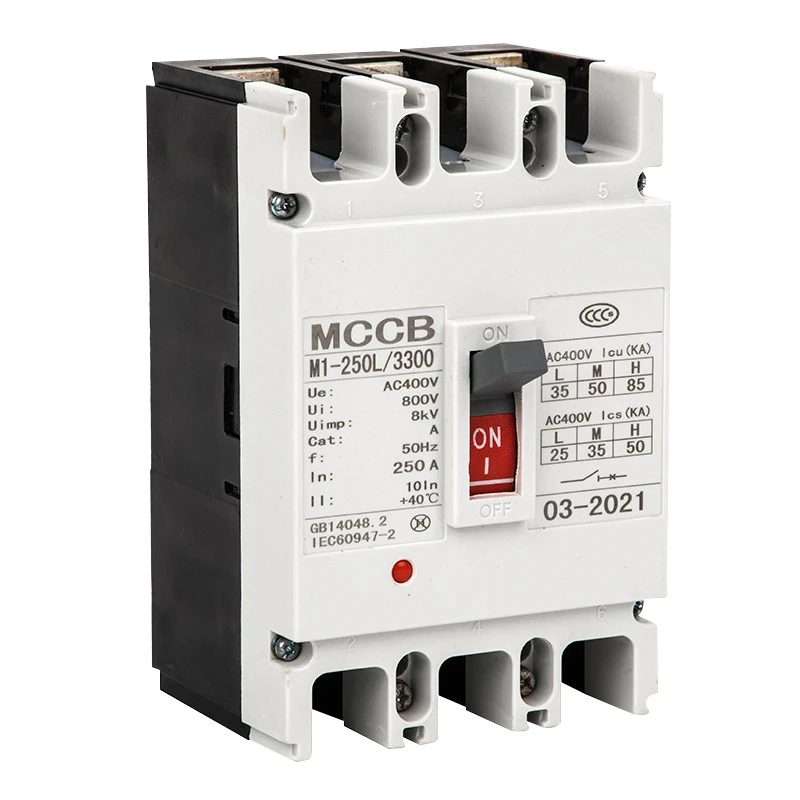

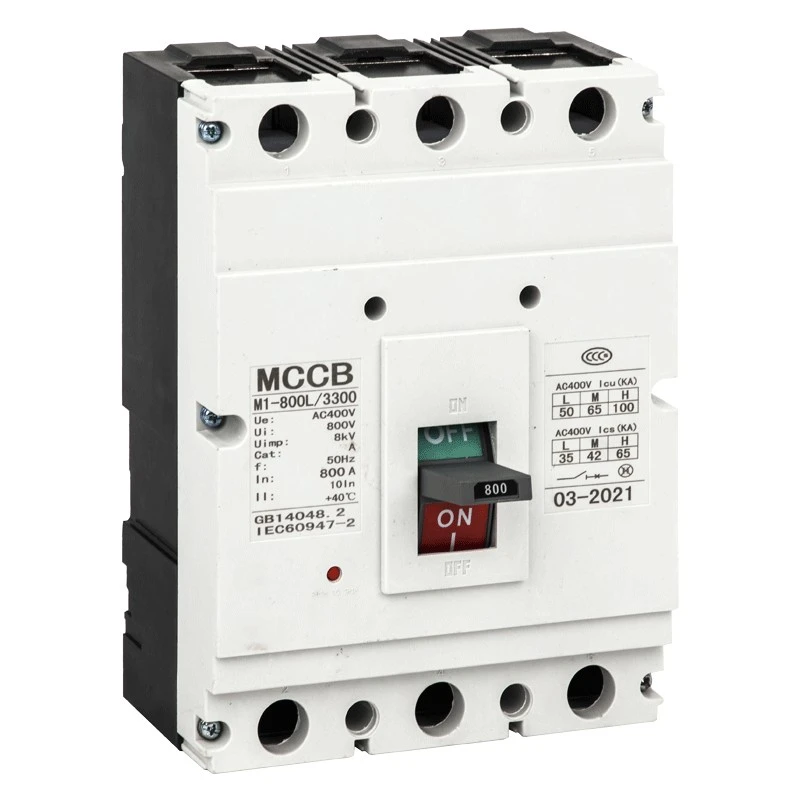

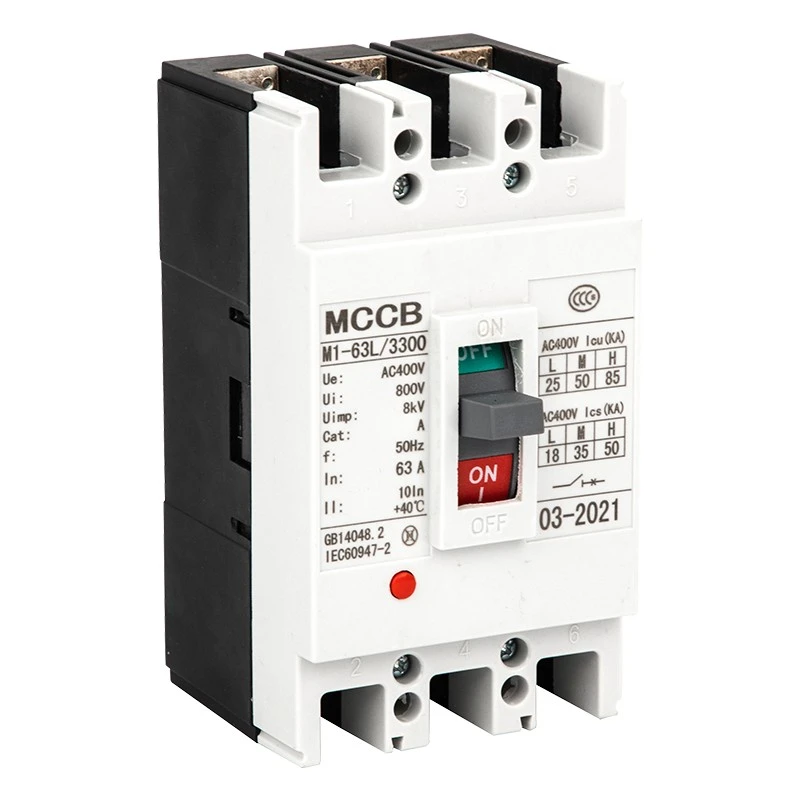

CM1 Molded Causa Circuit Breaker
Model:DAM2 (CM1) Series
Hoc CDADA CM1 Casus Molded Circuit Breaker (MCCB) aedificatur ad procurationem molem, cum IEC60947-2 certificatione et stabili observantia systematum industriae virtutis. CM1 MCCB alta vi structura et certa mechanismo supplantando utitur, facile ad instituendum et conservandum. Intelligentes praesidia cum durabili consilio coniungit, dum vitam servitutis exercet in potestate distributionis et applicationes graves industriae.
Haec DAM2 (CM1) series CM1 Casus Fingitur Circuit Breaker summus effectus est humilis-voltage praesidio fabrica a Shanghai DADA Electric Co, Ltd, certa fabrica et elit in Sinis producta. Cum aestimata intentione insulationis usque ad 800V, intentionis 400V/690V laborantis aestimavit, et currentem aestimavit ab 63A ad 1600A, late pro potestate distributionis, tutelae ambitu, potestate motoris et mutationibus raris adhibita est.
Haec series institutionem verticalem et horizontalem sustinet, vexillum IEC60947-2 obsequitur, et totum onus, breve spatium et sub intentione praesidium armorum potentiae praebet.
Product Features
★ Ratum velit intentione: 800V; Voltage: 400V/690V
★ Current range: 63A, 100A, 225A, 400A, 630A, 800A, 1250, 1600A
★ facultatem frangendi: L vexillum, M medium, H altum genus fractionis
Scelerisque magneticae & electro dualis emissio modorum
Verticalis / horizontalis institutionem aptam ad usum solitudo
Prolixus ambiens temperatus range: -5℃~+40℃
Altitudo ≤2000m, pollutio gradus 3
Applications
CDADA CM1 Causa Circuit Breaker efficta late applicatur in systematis industrialis et civili potestate distributionis, inter officinas, aedificia, centra data, statio potentiae, infrastructurae, instrumentorum mechanicorum et repositorium distributionis potentiae. Adhibetur etiam ad tutelam motoriam, conversionem circuitionem, et copiam potentiae tutae constructionis, metallurgiae, petrochemicae et aliarum industriarum.
Technical Parameters
Signa: IEC60947-2, GB14048.2
Frequentia: AC 50Hz/60Hz
Pole: 1P,2P, 3P, 4P
★ Release: Thermal-magneticum (duplex), electromagneticum (instanti)
★ occasus instantaneus: Distributio generis 10In±20%; Motor generis 12In ± XX%
★ Installation: Front wiring, tergo wiring, obturaculum-in type
★ Operatio: Manuale, mechanismum electricum operating
|
Exemplar |
Pole |
Ratum current (A) |
Ratum operans voltage (V) |
Ratum Nulla voltage (V) |
Rated ultima brevis - ambitus capacitatis fractionis (Icu) |
Flashover procul (mm) |
||
|
Test voltage (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10、16、20、25、 32、40、50、63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3、4 |
50 |
35 |
|||||
|
DAM2L-100 |
3、4 |
16、20、25、32、40、 50、63、80、100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2、3/4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3、4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2、3/4 |
20 |
10 |
|||||
|
DAM2L-225 |
3、4 |
100、125、140、 160、180、200、225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2、3/4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3、4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2、3/4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225、 250、315、 350、400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3、4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3、4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400、500、630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3、4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3、4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630、700、800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800、1000、1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Adumbratim & instruitur Dimensiones
Nostrum CM1 MCCB praebet integram dimensionem datam pro 63A-1600A exemplaribus, incluso ante wiring, postico wiring et obturaculum-in typo. Moles variae magnitudinum (63/100/225/400/630/800/1250/1600) aequaverunt H, H1, H2 dimensiones pro modulo arcae institutionis. Altitudo manualis et electrica operans mechanismum pro facili conventu etiam normatum est.
Accessories & functiones
Internum Accessories
Shunt release: LXX% -110% rated voltage pro certo ludentibus
sub-voltage release: XXXV% -70% voltage stilla pro ipso praesidio
★ Auxiliares contactus & terror contactum: Signum feedback et culpa terrorem
★ Pre-metri dedicated release mercedem: mora ludentibus 0.5-2s
Accessories externi
Manual operating mechanism
Electric (motor) mechanism operating operating
Phase separators, cochleis escendens, busbars kits
Qualis Imperium O

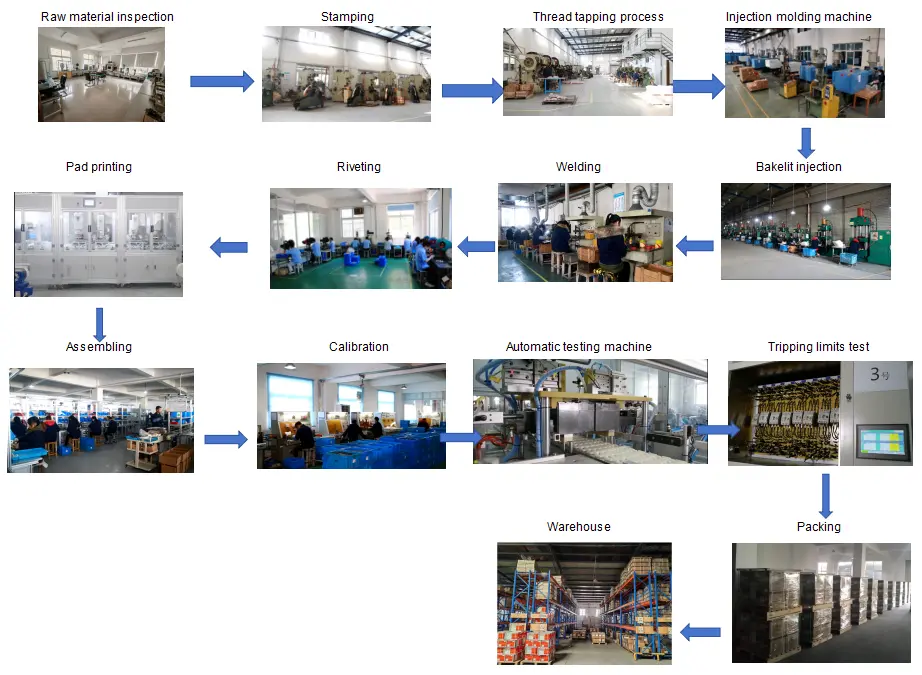

Rudis materialis inspectio → Productio processus → Conventus linea → Trinus propria test → Temperature ortum test → Brevis circuitus test → Seneca test → Aspectus & ratio reprehendo → Packaging → Final inspectionem ante sit amet
Packaging & Shipping
Standard export currus + ligneum grabatum pro tutum translationem
★ Label: exemplar, vena, polus, quantitas, libellum
Idoneum mari, aere, et terra logistics
Testimonia
IEC60947-2, GB14048.2, CE, CB, ROHS aliaeque approbationes internationales.
Lorem Cooperatio Causae
CDADA DAM2 series MCCB instructa est clientibus globali, additis systematis integratoribus potentiae distributionis, instrumentorum industrialium fabricatoribus, officinas switchgear, contractores et notae fabricationis in Europa, Asia Meridiana, Oriente Medio, Africa et America Meridionali. Moles stabilis praebet copiam et solutiones nativus ad longum tempus sociis.
