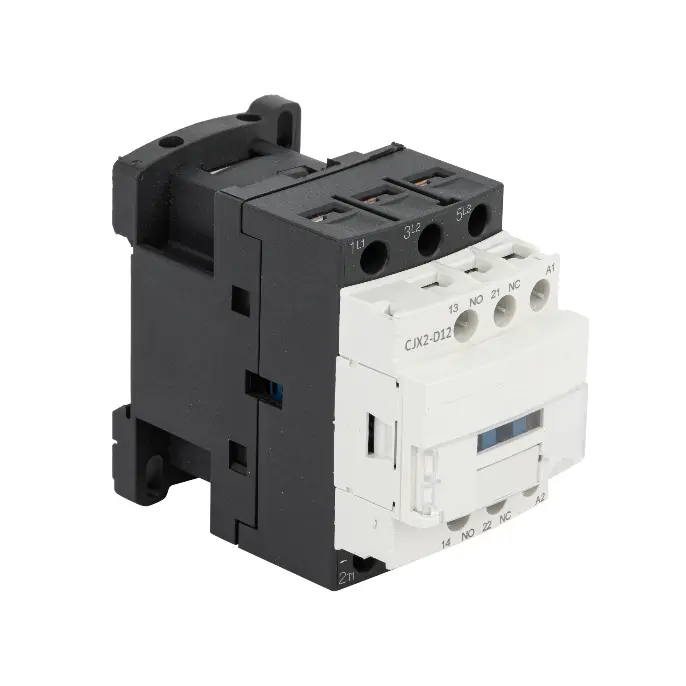

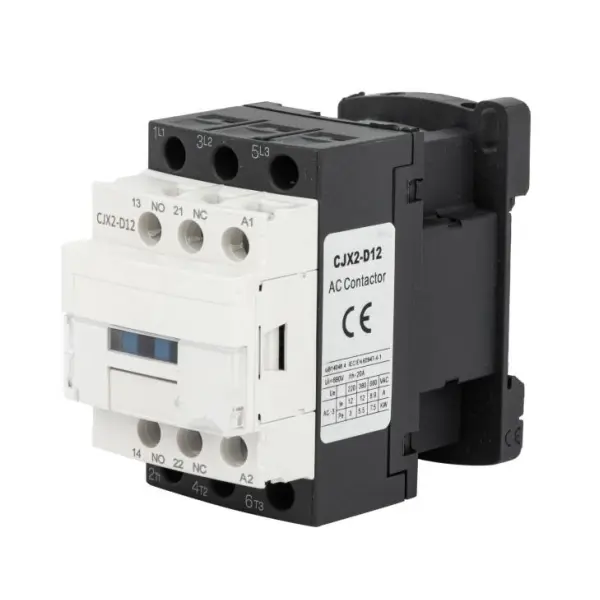

D Contactor

Model:LC1-D Series

Shanghai DADA Electric certa fabrica est et nostra notas habemus, CDADA. Noster D Contactor (LC1-D Series) est IEC 60947-4-1 certificatus, 3P/4P, usque ad 620A, AC-3/AC-4 aestimatur. Lata coil optiones voltage. Hoc productum ad motorem imperium & industrialem automationem commendamus, nos contactum pro quote.

Mitte Inquisitionem

depictio producti

Ingenitorem certae motoris imperium et potestatem mutandi cum CDADA LC1-D Series D Contactor summus perficientur AC contactor designatus a Shanghai DADA Electric CO.,LTD obviam IEC/EN 60947-4-1 signa. Constructum pro applicationibus industrialibus, mercatoriis et infrastructuris, series LC1-D sustinet configurationes 3 polorum vel 4 polorum cum currentibus aestimatis ab 9A ad 95A (usque ad 620A in gravi officio variantium) et moderatur motores 3-phase sciurus usque ad 45kW (ad 380-415V, AC-3 officium).

Notis auxiliaribus 1NO+1NC vexillum instructus, compagem thermarum onerare dispositos ad plenam motorem tutelam integrat. Cum AC vel DC coil optionibus (24V-600V), AC-3 et AC-4 genera utendo, et robusto consilio pro 690V insulationis aestimatur, CDADA D Contactor in frequentibus cyclis satus-sinisticis, systematibus emissariis, soleatus, compressoribus, et unitatibus HVAC, etiam in ambitibus ambiendis postulandis usque ad 40°C temperationem ambientium et MMm altitudinis liberat.

D Contactor

Key Specifications

Series: D

Brand: CDADA | Manufacturer: Shanghai DADA Electric CO.,LTD

Standard: IEC/EN 60947-4-1

Certification: CE

Poloni: 3P vel 4P (selectable)

Current Operational Rated (AC-3): 9A – 95A (usque ad 620A extensum)

Motor Power Control (AC-3);

380/415V: 4kW - 45kW

660/690V: usque ad 45kW

Utilisation Categoriae: AC-3 (custolarum motorum sciurus), AC-4 (plugging & inching)

Ratum Insulation Voltage: 690V AC

Ambiens Temperature: -5°C ad +40°C

Altitude: ≤ 2000m

Adscendens: Planum verticale ±5°, Adscendens Categoria III

Contactus auxiliares: 1NO + 1NC (vexillum in omnibus exemplaribus)

Optiones Coil:

AC Coils: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

DC Coils: 24V, 36V, 48V, 110V, 220V

Technical Data sheet

Items		Exemplar	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Pole			3/4	3/4	3/4	3/4	3/4
Contactus auxiliaris			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Rated conventional heating current (A) AC-1			20	20	30	40	50
Rated operational vena (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Rated velit voltage (V AC)			690	690	690	690	690
Potestas regitur 3-phase cavea motricium (AC-III)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
AC coil(V)			24，36，48，110，127，220，240，380，415，440，480，500，600
DC coil(V)			24，36，48，110，220

Items		Exemplar	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Pole			3/4	3/4	3/4	3/4	3/4
Ambitus auxiliaris Cat:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Rated conventional heating current (A) AC-1			60	80	80	110	110
Rated operational vena (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Rated velit voltage (V AC)			690	690	690	690	690
Potestas regitur 3-phase cavea motricium (AC-III)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
AC coil(V)			24，36，48，110，127，220，240，380，415，440，480，500，600
DC coil(V)			24，36，48，110，220

Items			Exemplar		LC1-D115		LC1-D150		LC1-D170		LC1-D205		LC1-D245
Pole					3		3		3		3/4		3/4
Rated conventional heating current (A) AC-1					200		200		200		275		280
Rated operational vena (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Rated velit voltage (V AC)					690		690		690		690		690
Potestas regitur 3-phase cavea motricium (AC-III)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
AC coil(V)					110，127，220，240，380，415，440，480，500，600
Items				Exemplar		LC1-D300		LC1-D410		LC1-D475		LC1-D620
Pole						3/4		3/4		3/4		3/4
Rated conventional heating current (A) AC-1						360		430		580		850
Rated operational vena (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Rated velit voltage (V AC)						690		690		690		690
Potentia regitur III, tempus cavea motricium (AC-III)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
AC coil(V)						110, 127，220，240，380，415，440，480，500，600

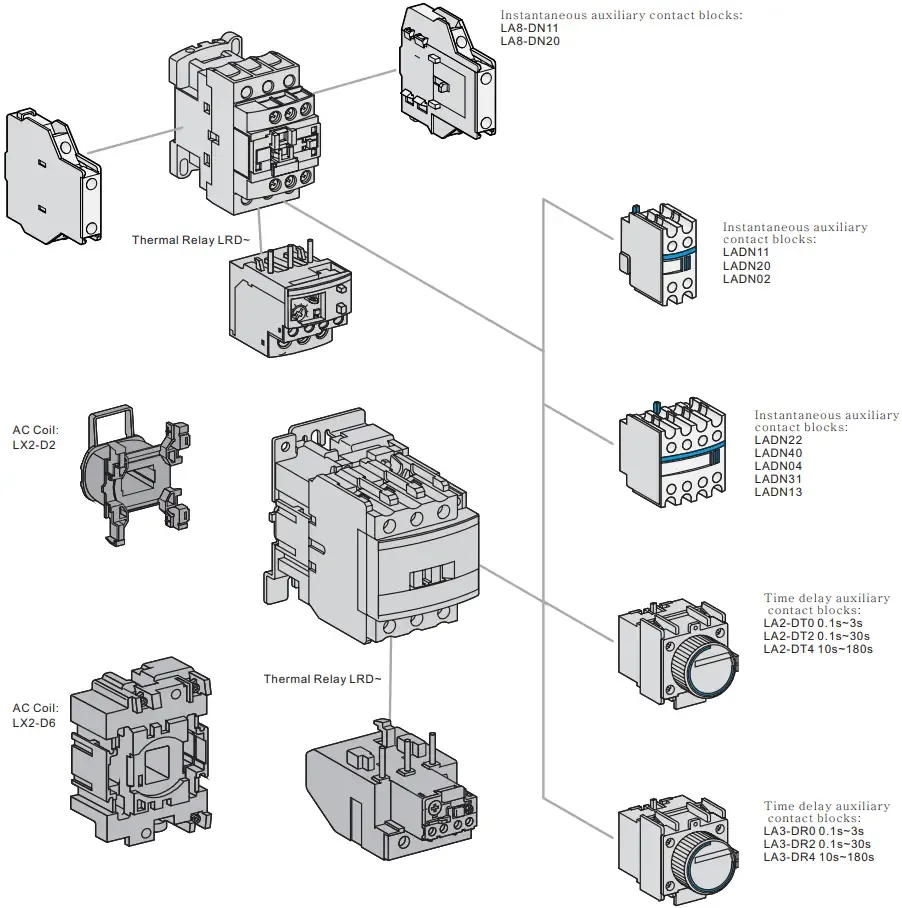

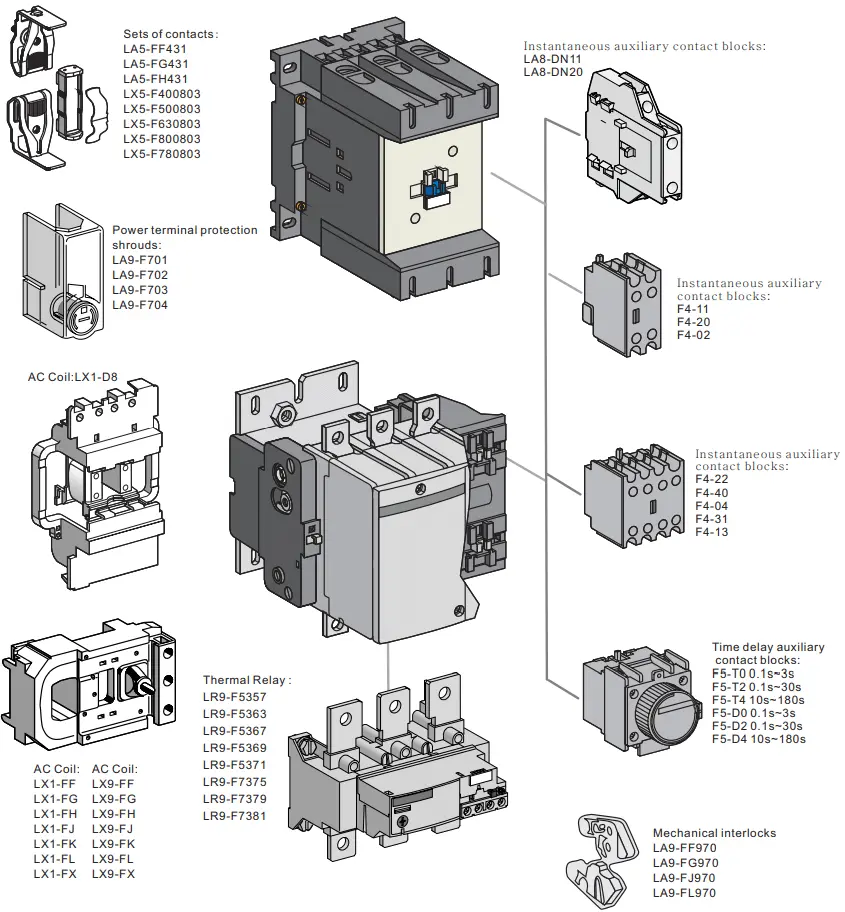

Accessories

D Contactor

Cur elige CDADA D Contactorem?

Verum IEC Obsequium

Designatum et probatum ad IEC/EN 60947-4-1 - globalem acceptationem et interoperabilitatem praestandi.

Full Motor Control SOLUTIO

Pair cum CDADA scelestos onerare dispositos pro conventibus motoriis inchoati perfectis-onerare + breve spatium solitudo.

Lata intentione flexibilitate

Elige ex 13 AC et 5 DC coil voltages-specimen pro inceptis globalibus vel tabulis voltagenis mixtis.

Robustum pro Gravi Officio

Sustinet AC-4 officium (frequens mutans/plenda) perfectum pro gribus, elevatoribus et vectoribus.

Plug-and-play Integration

Vexillationes 1NO+1NC contactus auxiliares efficiunt faciles intercludere, significativas vel PLC feedback.

Industrial-Grade Reliability

Experta alta patientia electrica, contactus humilis resistentiae, et arcus stabilis suppressio - downtime minima.

★ Praecipua nostra commoda sunt: 1) Perfice certificationes internationales, 2) OEM/ODM facultas fortis, 3) Ratio emolumentorum summa, 4) Facultas magnarum certarum productionis, 5) experientia exportationis extensa.

D Contactor

★ Producta nostra feliciter exportantur in Asiam Meridionalem, Orientem Medium, Americam Meridionalem, Africam, Europam, et regiones CIS, cum valida focus in mercatis Cingulum et Road.

D Contactor

Typical Applications

D Contactor Motor Imprimis: Pumps, fans, compressors, mixers

D Contactor HVAC Systems: Chiller & CERAULA imperium

D Contactor Industriae Automation: Conveyor lineae, machinis packaging

D Contactor Aedificium Management: Elevator imperium, accensis ripas

D Contactor Energy & aqua: wastewater curatio, systemata irrigationis

Frequenter Interrogata

Q1: What does "D Contactor" mean?

A1: "D" ad designationis seriem (LC1-D) adhibita globally pro hac suggestu modulari, AC contactoris suggestu normato. Classificationem technicam non habet-sed late cognoscitur in tabulis aedificii pro compatibilitate cum accessoriis sicut onerarias tabulas et interclusiones mechanicas.

Q2: Quid interest inter AC-3 et AC-4 officium?

A2:

● AC-3: Normalis incipiens / claudens motorum sciurus-cavearum (exampla, soleatus, fans). Inferior vis.

● AC-4: Crebra linamentis, inching vel praepostera (e.g. grues, spartum). Altior electrica accentus → robustiores contactus requirit. → CDADA LC1-D utrique aestimatur, versatile faciens.

Q3: Possumne hoc contactore uti sine onere Nullam?

A3: Non commendatur pro motoribus onerat. Contactor potestatem tantum permutat - contra onera non protegit. Semper par cum onerare scelerisque vel electronico Nullam ad salutem motoriam.

Q4: An IV-polus versiones praesto?

A4: Ita! Omnia LC1-D exempla adiuvant 3P vel 4P configurationum-idei pro applicationibus neutrarum permutationum vel systematum filum 4-.

Q5: Cur elige CDADA super alias D-series contactorum?

A5: CDADA offert;

Sincerus IEC 60947-4-1 obsequio cum test tradit

● latius coil voltage range (including 415V, 480V, 600V pro export)

Qualitas consistens cum contactu admixto argenteo et arcus chutes

OEM-amica Morbi cursus sapien et ieiunium sample turnaround

● Global certificationes (CE) et documenta Anglica
