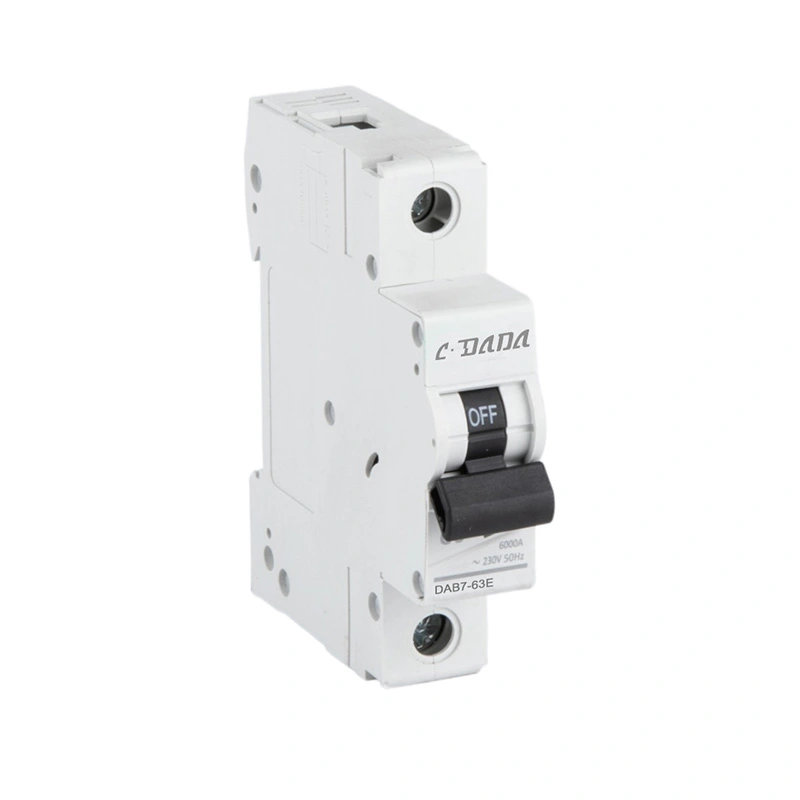

1P 6kA AC Miniature Circuit Breaker
Model:CDADA Series AC MCB
Sentire liberum contactus CDADA, et nostrum 1P 6kA AC Circuitus Miniaturae Breaker cum officinas directo pretio offerens, certum onus et breve spatium munimentum cum consilio compacto DIN-rail offerens. Productum hoc lineamentum accuratum scelerisque-magneticum supplantat et perspicuum statum indicat, facile est instituere et conservare. Firmum observantiam in gyris commercialibus amet ac levibus tradit, securam vim praestandi cum longa opera vitae praestandi.
CDADA 1P 6kA AC Circuitus minimus Breaker qualis est summus minimus polus unius circuli ruptor designatus ad systemata AC low-voltage. Certam tutelam praebet contra onera et circuitus breves, electricum circuitus et connexum apparatum efficaciter custodiens. Ad signa stricte internationalia fabricata, hoc AC MCB specimen est distributorum, OEMs et redemptores electricae quaerentes solutiones tutelae durabiles, sumptus efficaces solutiones.
Product Features & Commoda
★ Compact Design: Space-saving structure convenient for standard distribution boards
High Breaking Capacity: 6ka brevis-circuitu interruptio facultatem ad augendam salutem
Precision Tripping: Thermal-magnetica iter unitatis praestat accurate cultro & brevis circuitu praesidio
Serena Status Indicationis: Visibilis DE / off fenestra quia velox circuitu status verificationis
Secure Wiring: High-qualis terminales cum stabili nexu, reducendo contactus resistentia
Dura Construction: flammae-retardant habitationi caliditas resistentia
★ Securus instruitur: Vexillum 35mm DIN-rail mons pro conventu vivo
★ Reliable Quality: 100% full inspection before shipment, consistent performance
Applications
★ CDADA 1P 6kA AC Miniaturae Circuit Breaker late in usu est:
"Edes residentiales, conclavia et villae"
officium aedificia, shopping malls et facultates commerciales
Lux industriae officinae et plantae fabricandae
Shopping centra, hotels et popinae
Publica facultas et infrastructura incepta
Accensus circuitus et parva potentia armorum tutela
Technical Parameters
|
Item |
Specification |
|
Exemplar |
CDADA Series AC MCB |
|
Standard |
IEC60898 |
|
Type |
AC MCB (Minature Circuit Breaker) |
|

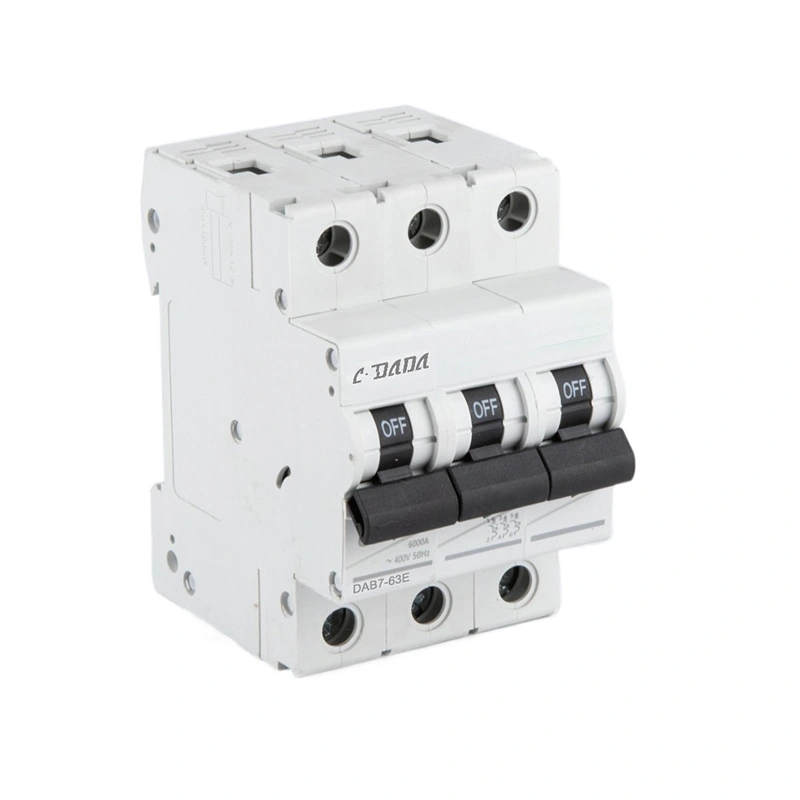

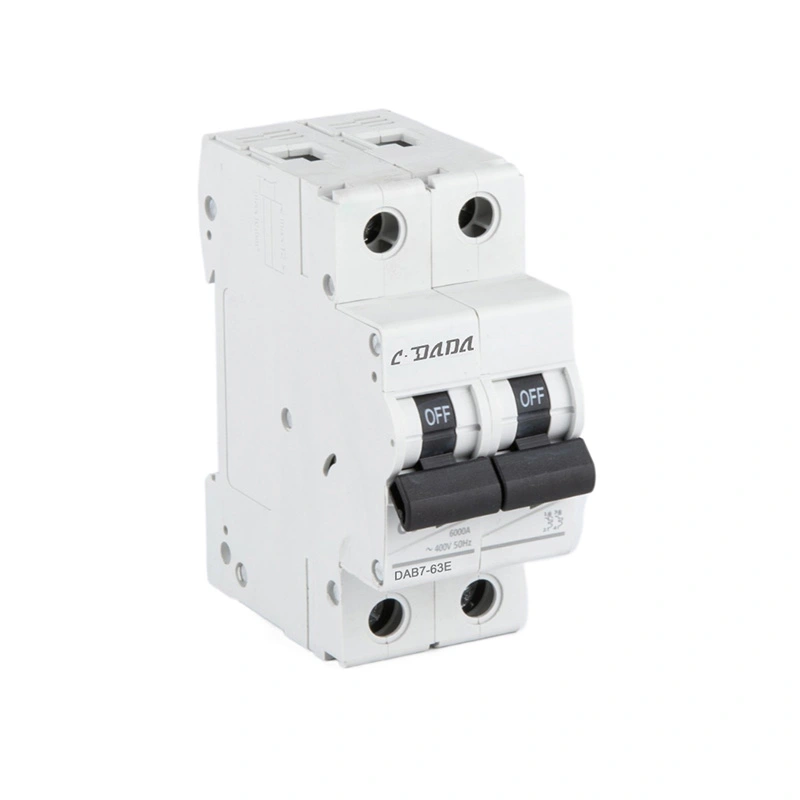

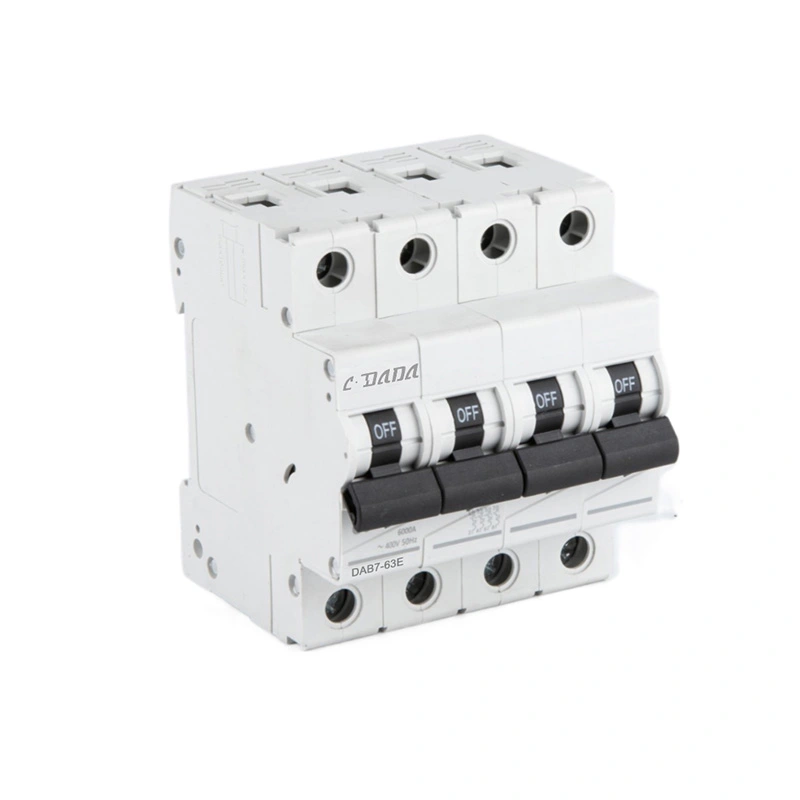

Poloni |
1P,2P,3P,4P |
|
Capacitas solveret |
6kA |
|
Ratum Current |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Labi curva |
B, C, D (libitum) |
|
Ratum Voltage |
AC 230V, 400V |
|
Insulation Voltage |
600V |
|
Impetus intentionis |
6kV |
|
Praesidium Degree |
IP20 |
|
Institutionem |
35mm DIN Rail |
|
Temperature operating |
-5℃ ~ +40℃ |
|
Mechanica Vita |
≥20,000 res |
|
Vita electrica |
≥4,000 res (at rated current) |
|
Signa Obsequium |
IEC60898-1, IEC60898-2 |
Forma Dimensiones
★ Latitudo: 17.8mm per polum (vexillum unius poli size)
Height: Proxime 85-92mm (variatur a current rating)
Profundum: Proxime 68-72mm
Wiring capacitatem: 1.5-16mm² flexibile vel rigidum funem aeris
★ Compatibility Standard: Congruat 35mm DIN systemata rail (TS35/7.5, TS35/15)
IEC 60898-1

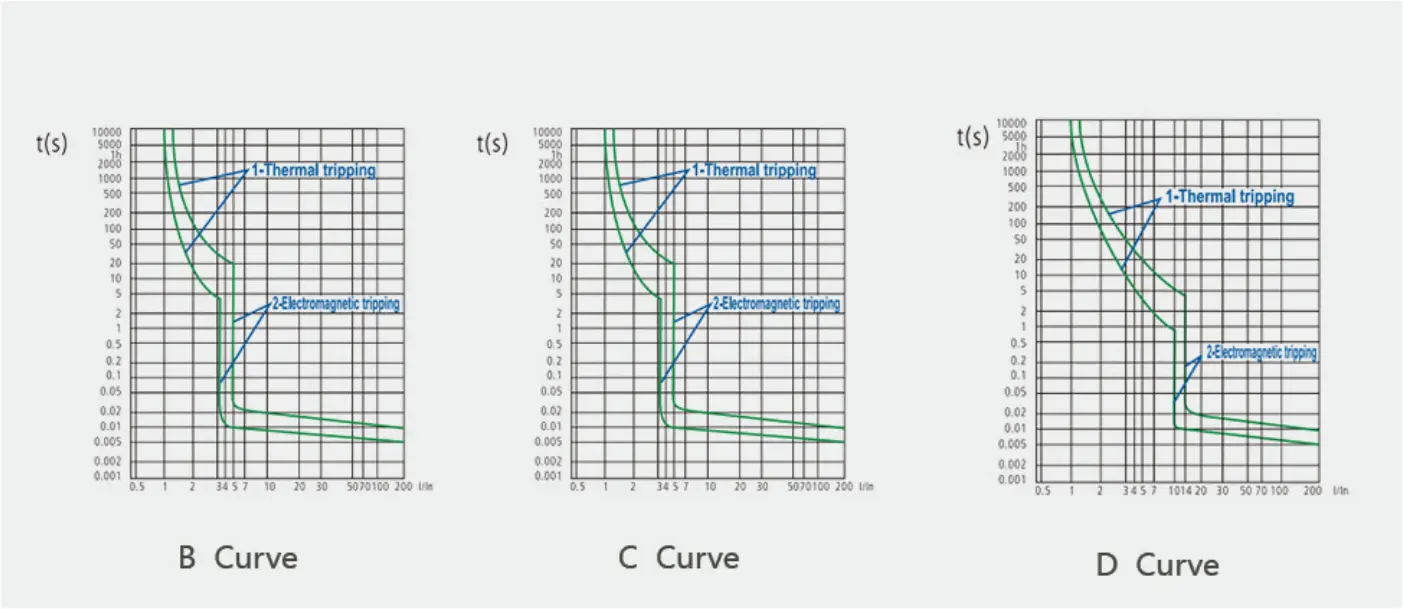

Magnetic Release
Cum brevis occursus circuitio fit, instantanea supplantatio fit a magnete nucleo ferreo. Secundum vexillum 1EC60898, productum hoc in tria genera dividi potest: B, C, D.
|
|
Test current |
Labi tempus |
Applications |
|
B Curve |
3ln 5ln |
0.1 |
Typus B tantum applicabilis est ad onera activa: -Electric calefacientis-aqua calefacientis Electric furmace |
|
C Curve |
5In 10ln |
0.1 |
Typus C aptus est ad onera ordinaria; -Lamp -Power ostium tabernaculi -Small potentia motricium |
|
D curva |
10ln 20In |
0.1 |
Imperium et gyros tuentur in instanti fluctui currenti (magnus motoribus) |
Scelerisque Release
● Cum onerare in circuitu occurrit, bimetallic ruptor inflexus circuitionis ob calorem, contactos disiungendi et consequens in sceleste supplantando efficiens;
Vexillum IEC triplicationem temporis discursum definit pro diversis currentibus onerare;
-Relatio test environment temperatus 30 °C.
|
Test current |
Labi tempus |
|
1.13ln |
t z 1h (in 63A) |
|
1.45ln |
t<1h (In 63A) |
|
2.55ln |
1s<1h<60s(In≤32A)1s |

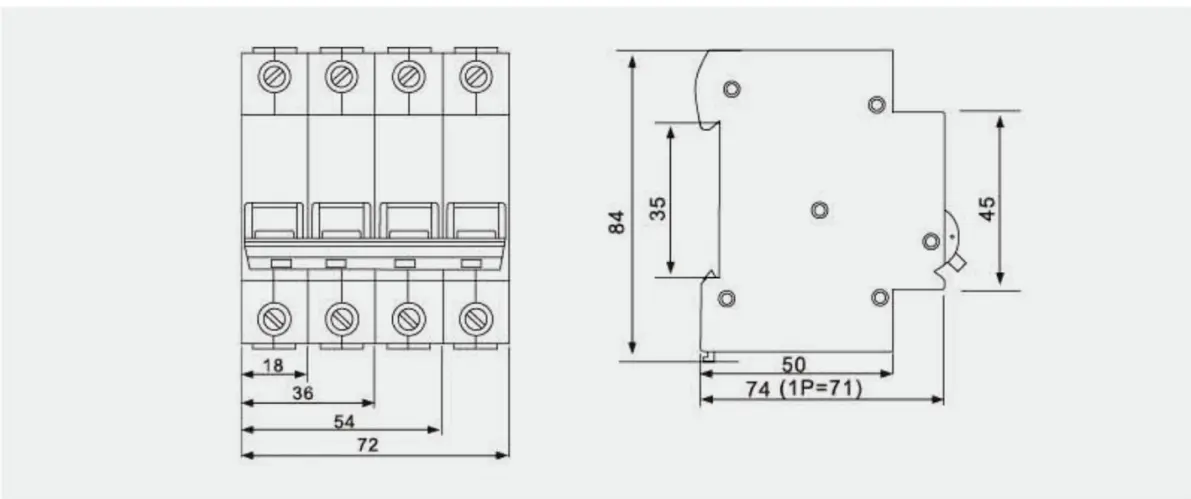

-Product dimensiones et institutionem (MM)
Productum annectitur in duce railes cum maximo nexu capacitatis 25mm2.
Qualitas Imperium
★ ISO9001 Certified vestibulum: qualitas administrationis ratio per productionem strictae
★ Comprehensiva Testis: 100% inspectiones comprehendo characteribus supplantantibus, temperatura ortum et intentione probat
★ In-Domus Productio: XC% of key components factorum interius pro qualitate consistency
Aliquam Testis: High / low caliditas operatio, humiditas resistentia verificationis
Reliability Fides: Long-terminus vetustatem probatio pro extenso servitio vitae
Packaging & Shipping
Standard Export Packaging: Corrugated cartons with protection
★ Serena Labeling: Exemplar numerus, current ratings, polus comes, quantitas et certificatio notitia
Protective Packaging: coetus archa pro XII unitas ne damnum in transitu
★ Shipping Options: Idonea vecturae maris, aeris et terrae; praesto est mole sit amet
★ Custom Packaging: OEM packaging options available for notam sociis
Customer Success Causae
★ CDADA 1P 6kA AC Miniaturae Circuitus Breaker diu terminus cooperationem cum clientibus per orbem fundavit;
★ Projects Residentialibus: Suppleverunt tincidunt habitationi in Asia Meridiana, Medio Oriente et America Meridionali
★ Commercial Installations: Partnered with electrical redemptores in Europa, Africa, Asia ad incepta commercialia aedificanda
★ OEM Partnerships: Collaborated with global brands electrical for private labeling and customized solutions
Industrial Applications: dummodo ad fabricandum facilities pro machinis et apparatu praesidium
★ Distributor Networks: Operatio cum distributoribus regionalibus in super XXX regionibus ad occursum loci forum
