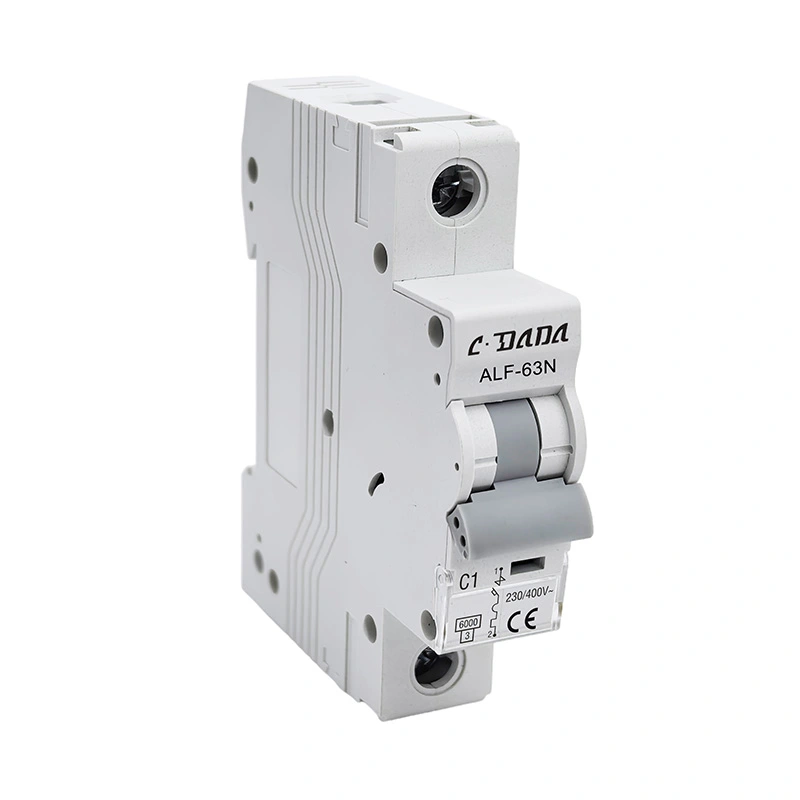

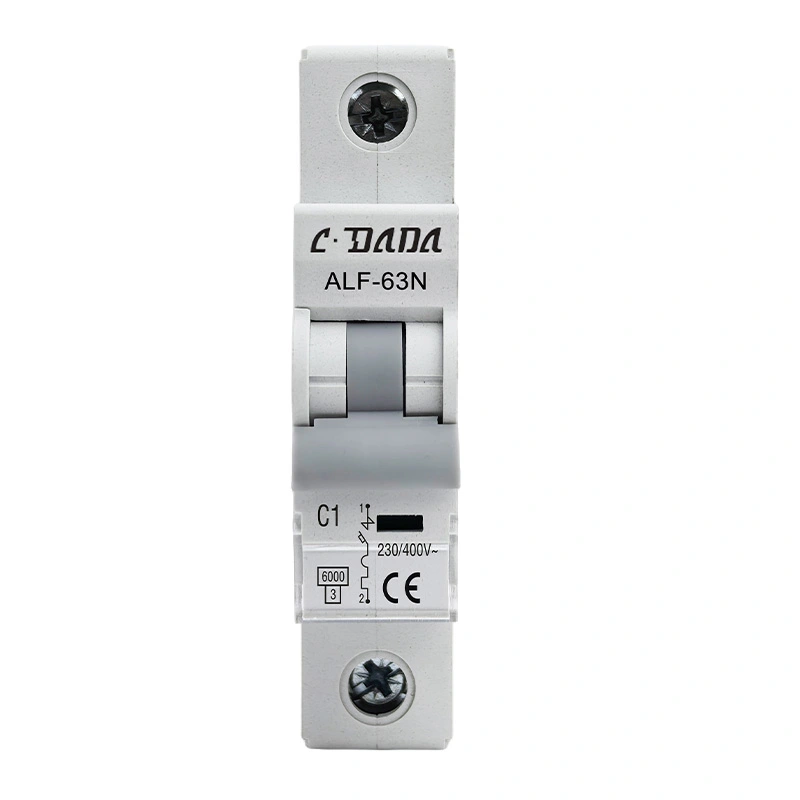

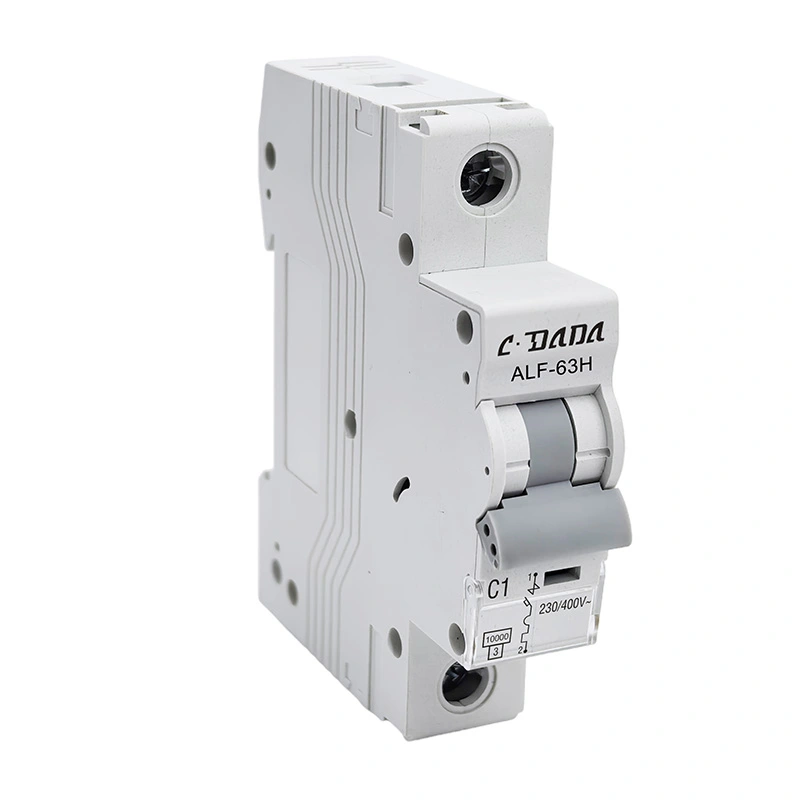

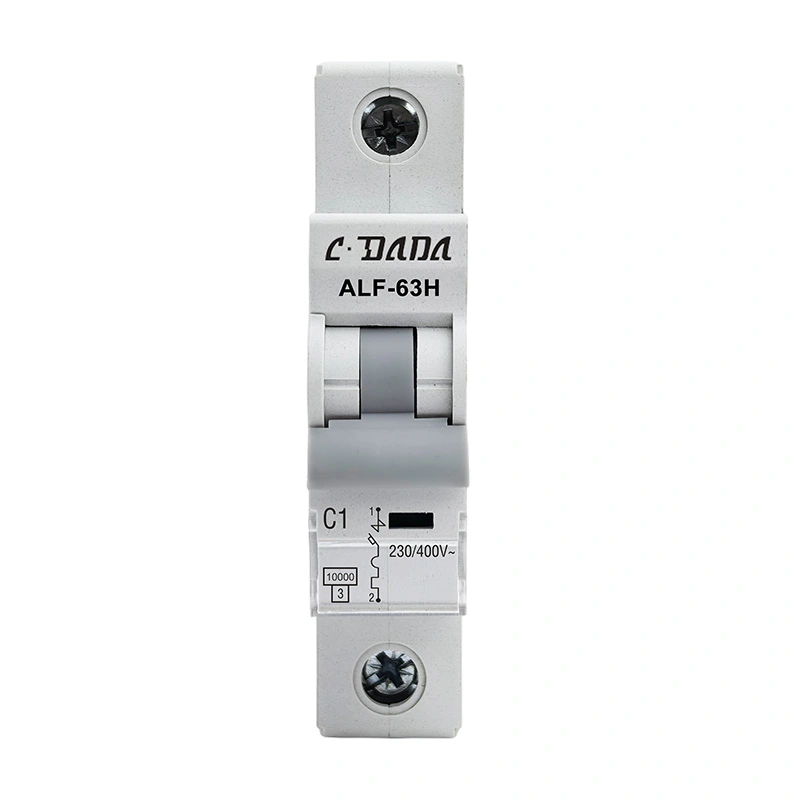

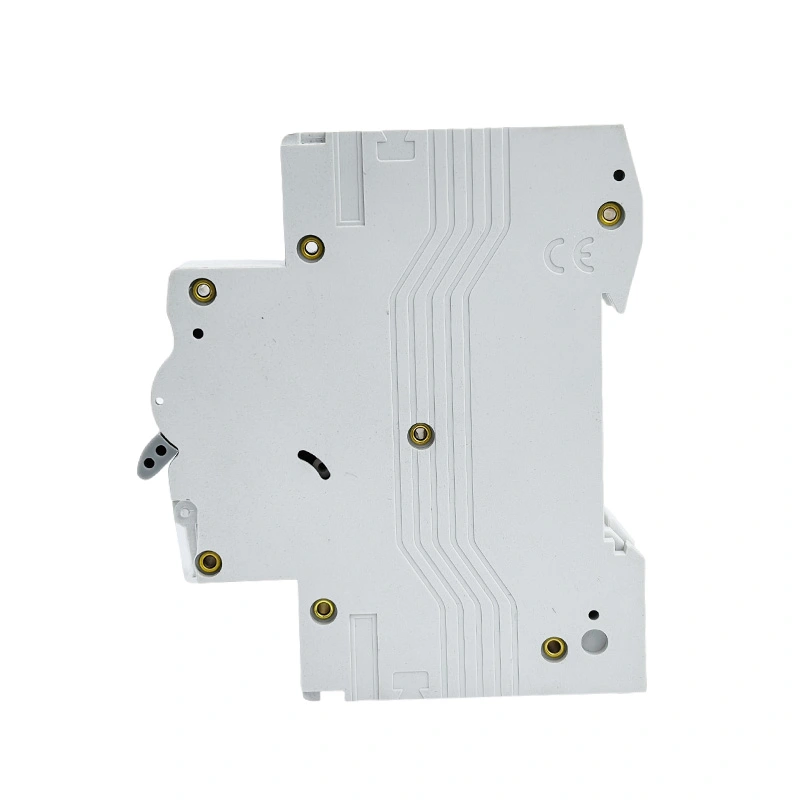

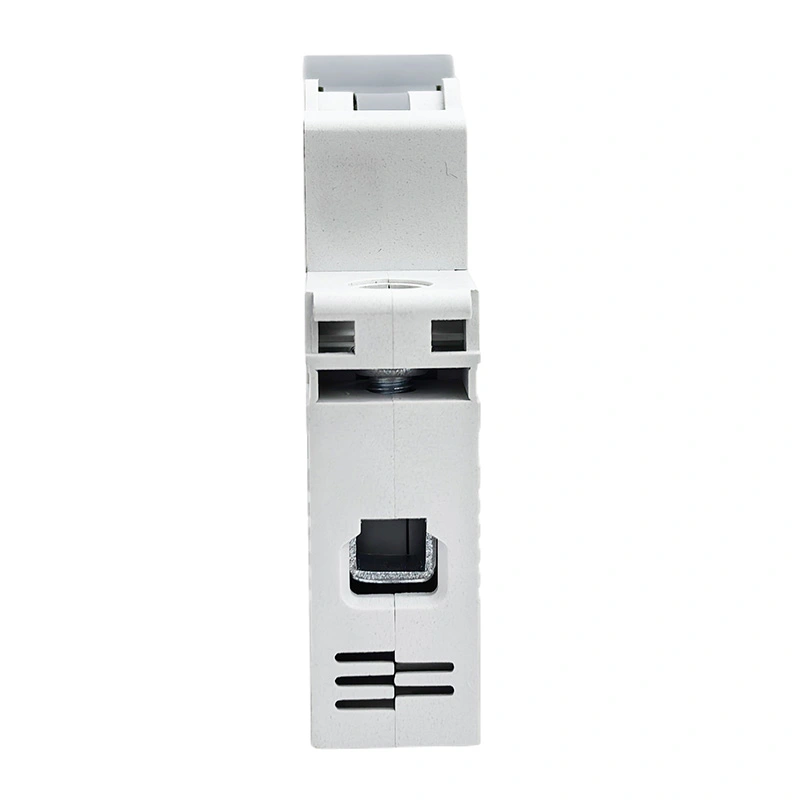

6KA 10kA Miniature Circuit Breaker

ALF-63N/H series altae fractionis 6KA 10kA miniaturae Circuit Breaker (MCB), cum IEC60898 vexillum conformat, MCB proprium habet certae operationis, functionis tutelae accuratae, temporis remissionis brevem, capacitatem fractionis altae, parvae quoque voluminis. Late in usu et onere contactorum, switchgear, et electrici apparatus.

Contactus CDADA ac nos in fabrica tua elige, officia OEM/ODM offerre possumus.

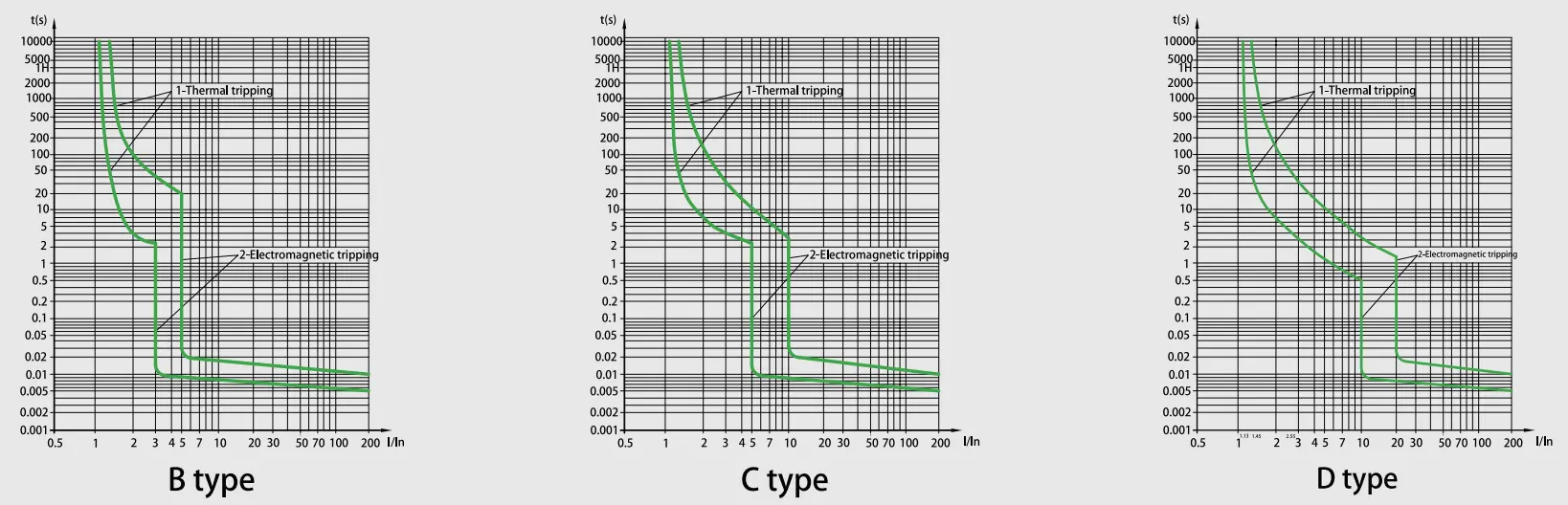

Curva propria

Technical Specification

ALF-63N/H Series 6KA 10kA Miniature Circuit Breaker
Standard	EN/IEC60898-1
Fractio facultatem (ka)	6,10
Praesidium	Adversus cultrum et ambitum brevem
Rated current (A) In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Ratum voltage(V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Ratum impetum sustinere voltage Uimp(kV)	4
Nulla voltage Rated Ui (V)	500
Energy cautum cass	3
Ambiens temperatus(℃)	-25~+40,Max.95%humiditatis
Scelerisque operating modus	1.13xln nulla ludentibus intra horam
	1.45xIn Tripping intra horam
Magnertic operating	B:(3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Numerus polorum	1P,1P+N,2P,3P,3P+N et 4P
Genus iter	Scelerisque / magnetica emissio
Terminatio facultatem	16mm flexibile vel 25mm rigidum usque ad 25A ratings
	25mmflexibile vel 35mmrigidum ex 32A ad 63A ratings
Praesidium gradum	IP20
Institutionem	Ascendens in 35mm DIN rail
Latitudo	17.8mm per pole

Circuit ruptor emissio proprium

NO.	Rated current remissionis (A)	Coepi status	Test current	certum tempus	Effectus obtinenda	Dicta
1	1-63	frigidus status	1.13In	t≤1h *	Non-iter
2	1-63	ad priorem test	1.45ln	t <1h *	iter	Current usque ad certum valorem profecta 5s oscitanter
3	In≤32	frigidus status	2.55In	1s	iter
	In>32
4	1-63	frigidus status	3In	t≤0.1s	Non-iter	B type
			5In	t<0.1s	iter	B type
			5In 10ln	t≤0.1s	Non-iter	C genus
			10In	t<0.1s	iter	C genus
			20ln	t≤0.1s	Non-iter	D genus
				t<0.1s	iter	D genus

Patientia (Operations)

Categoria	Operatio Cycles	Operatio frequency	Ratum current
Patientia electrica	4000	240/h	1-32
		120/h	40-63
Mechanica patientia	10000	240/h	1-63

Features

Ultra-High Brevis Circuit Fractio Capacitas

Provectus arcus technologiae imperium consequitur facultatem interpellationis altioris capacitatis ad signa industriae comparata, certa tutelae systematis electricae industrialis-gradus sub extrema culpa condiciones praestans.

Dual-modus Connection Interface

Hybrida designatio terminalis integra sustinet tum rigidum busbarum docking et funem flexibilem sonantem, aptationem instrumenti liberam ad varias institutionis missionum institutiones dum minuendo tempus per 40% minuendo.

Energy-Repono Mechanismum ad Longevitatem

Veris adiuvatur operandi ratio cum 10,000 cyclis mechanicis patientiam, featuring lapsum technologiae compensationis

Advanced composita clausura

cum famoso retarcante, resistente calori, et impulsus probatione proprietatum arcanorum exstingentium thalamorum integrarum pro contentorum culparum eventuum.

Dynamic Current-limiting Acta

Intelligens per industriam suppressionis reducit apicem culpae excursus per 65-80%, ut amni notae specificationem optimizationem cum 30% altiore systematis sumptus reductionem potentiae.

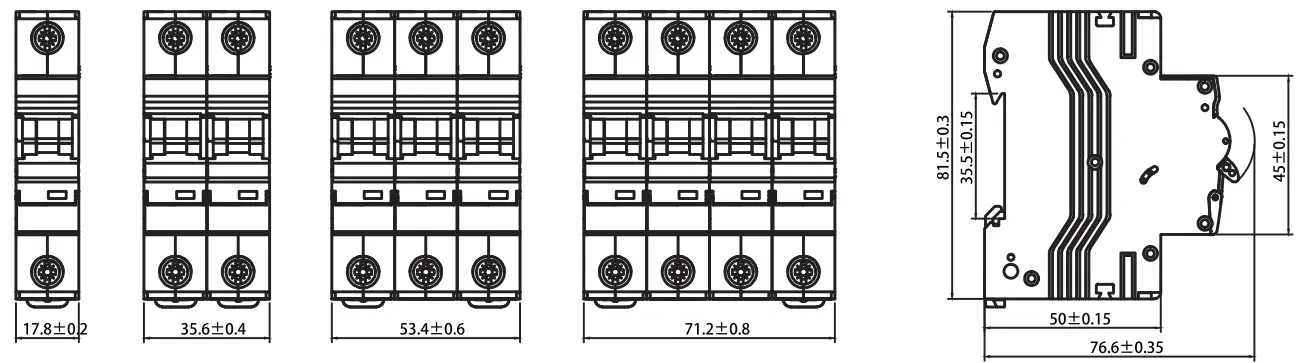

Divisio dimensionum

Application missiones

Residentiales: Consumer unitates et tabulas distributio pro salute domus.

★ Industriae: Praesidium contactorum, switchgear, et apparatus electrica graves.

★ Commercial: Officia aedificia et shopping malls alta fractionis fidem requirunt.

Quality Control & Standard Testing

★ Omnis CDADA MCB dura tentatio subit ut obsequium IEC60898-1;

★ Thermal Tripping Test: Verified in 1.13In (non-iter) et 1.45In (trinus intra horam 1).

★ Magnetica Tripping Test: Praecisa emissio probatio notarum B, C, D.

★ Electrical patientia: Expertus ad 4,000 circuitus operationis.

★ Mechanica patientia: Verificatus pro 10,000 circuitus.

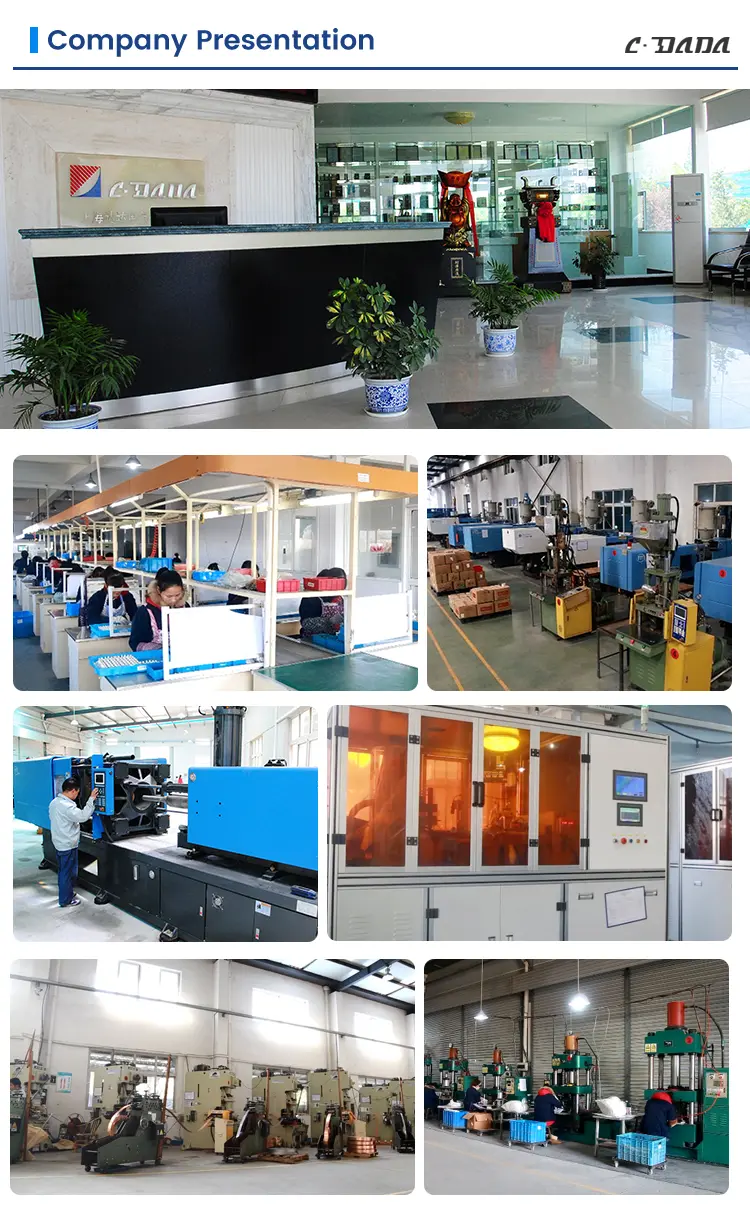

Factory fortitudo & Support

Shanghai DADA Electric Co., Ltd. est opificem ducens cum lineis productionibus provectis et machinalis quadrigis professionalis. Providemus:

★ Customized OEM/ODM services for global brands.

★ rei publicae-of-the-art probatio instrumenti ad partum nullus defectus curet.

★ Global Logistics Support: Optimized packaging pro mari et aere feugiat ut consequat in perfectam condicionem perveniant.
